Quotes - Engineering - Sales3 x 3 Falling Film Chiller
Mueller Falling Film Chillers| Product | Capacity | Ratings | Material |
|---|---|---|---|
| Falling Film Chiller | 144 to 288 GPH | 300 PSI / 400°F | Stainless Steel |
-Download Datasheet

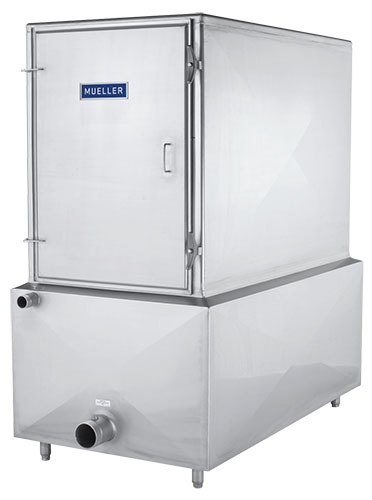

Note: Unit pictured is representative of standard unit and may not exactly depict the 3 x 3 Falling Film Chiller as shown on this page.
Product Overview
Part Number:
3 x 3 Falling Film Chiller
Series:
Falling Film
Brand:
Paul Mueller Company
Configuration
Connections:
Threaded Fill/Overflow
Refrigerant:
R-404A, R-448A/R-449A, R-454C, R-717
System Type:
Direct Expansion, Flooded, Recirculated
Materials of Construction
- Cabinet: Type 304 Stainless Steel, 2B Finish
- Evaporator Plates: Stainless Steel
- Tank: Insulated Stainless Steel
- Distribution Pan: Stainless Steel
- Welds: Bead-Blasted Stainless Steel
Specifications
- Number of Plates: 2-4
- Lenght x Width x Height: 44.5 x 22.25 x 77.125
- Maximum Shipping Weight: 925 lb
- Tank Capacity: 73 gal
| 3 x 3 Falling Film Chiller Plate Options | ||||
|---|---|---|---|---|
| Number of Plates | Gallons Per Minute to Wet | BTU/Hr | E-Star HiPerForm Condensing Unit |
Gallons Per Hour |
| 2 | 7.2 | 43,000 | 5 HP | 144 |
| 3 | 10.8 | 65,000 | 7.5 HP | 216 |
| 4 | 14.4 | 87,000 | 9 HP | 288 |
