Quotes - Engineering - Sales3 x 5 Falling Film Chiller
Mueller Falling Film Chillers| Product | Capacity | Ratings | Material |
|---|---|---|---|
| Falling Film Chiller | 294 to 1176 GPH | 300 PSI / 400°F | Stainless Steel |
-Download Datasheet

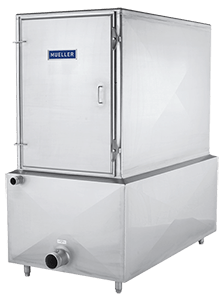

Note: Unit pictured is representative of standard unit and may not exactly depict the 3 x 5 Falling Film Chiller as shown on this page.
Product Overview
Part Number:
3 x 5 Falling Film Chiller
Series:
Falling Film
Brand:
Paul Mueller Company
Configuration
Connections:
Threaded Fill/Overflow
Refrigerant:
R-404A, R-448A/R-449A, R-454C, R-717
System Type:
Direct Expansion, Flooded, Recirculated
Materials of Construction
- Cabinet: Type 304 Stainless Steel, 2B Finish
- Evaporator Plates: Stainless Steel
- Tank: Insulated Stainless Steel
- Distribution Pan: Stainless Steel
- Welds: Bead-Blasted Stainless Steel
Specifications
- Number of Plates: 2-8
- Lenght x Width x Height: 68.5 x 39.125 x 77.75
- Maximum Shipping Weight: 1,520 lb
- Tank Capacity: 173 gal
| 3 X 5 FALLING FILM CHILLER SPECIFICATIONS AND SIZING | ||||||
|---|---|---|---|---|---|---|
| Cabinet Size | Number of Plates | Length x Width x Height (in | Maximum Shipping Weight (lb) | Tank Capacity (gal) | Distribution Pan Connection Size | |
| Minimum | Maximum | |||||
| N | 2 | 8 | 68.5 x 39.125 x 77.75 | 1,520 | 173 | 2" or 3" |
| O | 2 | 8 | 68.5 x 39.125 x 99.25 | 1,720 | 365 | 2" or 3" |
